For most homes, the best move is terminating roof runoff at a daylight point using buried solid pipe. When your lot is too flat for that, choose between a dry well, a pop-up emitter, or a rain garden based on your soil and freeze risk. Start by checking your yard’s slope and picking a termination point before deciding on pipe or materials.
TL;DR:
- Installing a buried solid pipe drain to daylight is the most reliable and low-maintenance solution for properties with sufficient slope, especially for long-term drainage.
- Flat lots require proper soil testing to determine if dry wells will drain effectively, as clay soils often make them impractical or size-dependent.
- Using 4-inch diameter smooth-wall pipe with at least a 1% slope is essential to prevent clogs and ensure proper flow in underground drainage systems.
- Regular inspection and flushing of buried lines, along with clear outlets and cleanouts, help prevent backups caused by sags, debris, or low points in the trench.
- When in doubt for complex setups or tricky terrain, hiring professionals ensures correct installation and avoids costly mistakes or future repairs.
Table of Contents
- Downspout Drainage Options Explained One by One
- How to Choose the Right Downspout Solution for Your Property
- Installation Basics and Materials Every Homeowner Should Know
- Common Mistakes, Seasonal Care, and Troubleshooting
- How Ivan’s Landscaping Handles Downspout and Grading Challenges
- Get a Drainage Assessment From Ivan’s Landscaping
- Sources
Downspout Drainage Options Explained One by One
Every yard has a different combination of slope, soil, and space, so the right downspout drainage option depends on what you’re actually working with. Here’s how the main choices stack up against each other.
Above-ground extensions and splash blocks are the cheapest fix and the one most homeowners try first. A rigid or flexible extension moves water away from the foundation, but it only works if it reaches far enough. Experts recommend 8 to 10 feet minimum for surface extensions, and shorter runs just relocate the puddle instead of solving it.
Buried solid-pipe drains to daylight are the gold standard when your lot has any usable fall. Water travels underground through smooth pipe and exits at a lower point on the property, out of sight and out of the way. Daylight discharge is generally the most reliable, lowest-maintenance termination available, and it avoids the mechanical parts that clog or freeze in other systems.
Pop-up emitters pop open underwater pressure and close when dry, which makes them a reasonable workaround on flat lots. They’re a compromise, though. Pop-ups are prone to clogging and freezing, so they fit best in moderate climates where you can’t daylight and don’t want a bigger excavation project.

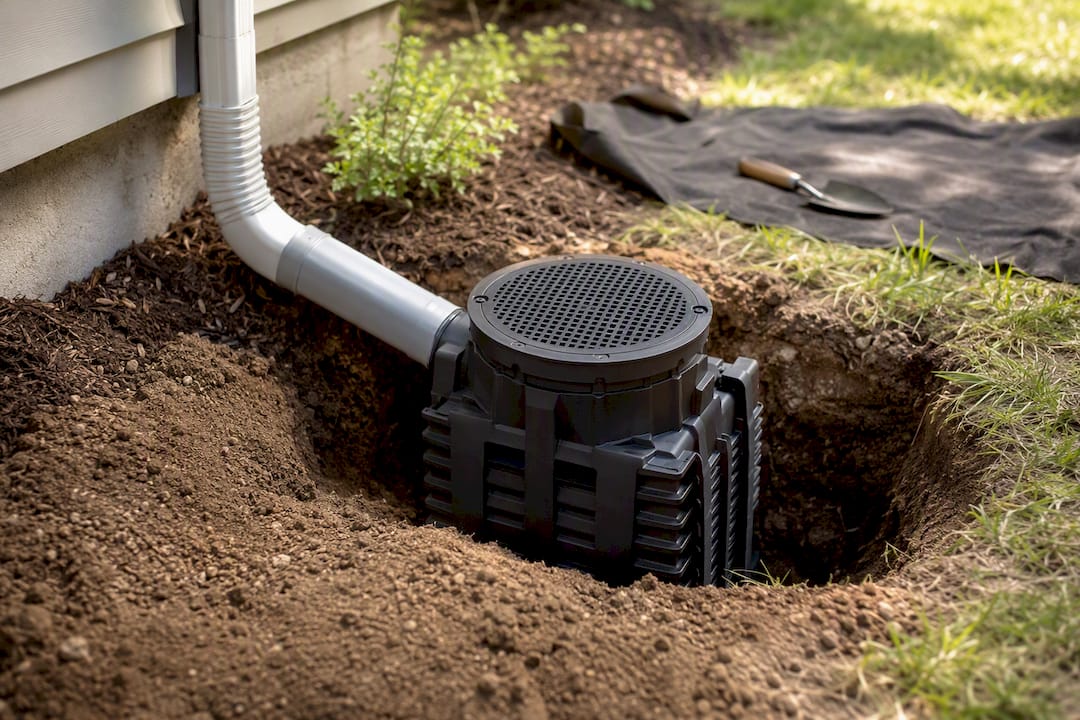

Dry wells hold and slowly release water into surrounding soil, but they only work where that soil actually drains. Sizing depends on a percolation test, and clay soils often need a much bigger dry well or aren’t suitable candidates at all. Prefabricated plastic units have made these more affordable than the old gravel-pit versions.
French drain tie-ins and catch basins let you route roof water into a broader subsurface drainage network, separate from groundwater seepage the French drain itself handles. This works well when you’re already correcting a wet yard and want the downspout system to share the trench.
Rain barrels and rain gardens capture water for reuse or let it soak into a planted depression instead of running off. Both need an overflow plan for heavy storms, since neither is designed to absorb an entire roof’s worth of water during a downpour.
Sump pump discharge comes into play on extreme low-lot situations with a high water table, where gravity alone can’t move water anywhere useful.
How to Choose the Right Downspout Solution for Your Property
The decision comes down to five questions: can you daylight, what’s your soil like, how much runoff are you dealing with, how cold do winters get, and what’s your budget. Answer those in order and the right option usually becomes obvious.
- Check your grade first. If there’s a spot on the property lower than your foundation, a buried run to daylight is almost always the better long-term choice for reliable gutter services.
- If the lot is flat, test your soil. A simple perc test tells you whether a dry well will actually work or just become an expensive mud pit.
- Match distance to method. Aim for 8 to 10 feet on above-ground extensions and 20 to 25 feet on buried runs whenever the yard allows it.
- Decide if you need a professional. Multiple downspouts merging into one line, runs crossing a driveway or patio, or any tie-in to a municipal storm sewer usually calls for a licensed contractor, partly because some jurisdictions require permits for storm sewer connections.
- Budget by scale, not just materials. A splash block costs almost nothing; a buried run with a catch basin and daylight termination is a bigger job, but it’s also the one you won’t be redoing in three years.
Pro Tip: Walk your yard after a heavy rain before you decide anything. Watching where water actually pools tells you more than any measurement you’ll take on a dry day.
Installation Basics and Materials Every Homeowner Should Know
Get the materials and grade right, and a buried system runs for decades with almost no attention. Get them wrong, and you’ll be digging it back up within a year or two.
- Use solid, smooth-wall pipe (SDR-35 or schedule 40 PVC) for the buried main, never perforated pipe meant for French drains.
- Choose 4-inch diameter for most buried downspout mains; 3-inch is acceptable only for short runs, since oversizing to 4 inches reduces freeze and clog risk.
- Maintain a minimum 1% slope, about 1/8 inch per foot, and aim for 2% where the yard allows it.
- Avoid “bellies,” or sags in the trench line, where water and debris collect and eventually clog the pipe.
- Add a cleanout or catch basin near the downspout entry to catch shingle grit before it works its way down the line.
- Terminate with a rock or splash pad and a rodent guard grate to keep the outlet from becoming a nest or a mud pit.
Skipping the cleanout is one of the most common installation shortcuts, and it’s also the one that causes the most callbacks.
Common Mistakes, Seasonal Care, and Troubleshooting
Most downspout failures trace back to a handful of repeat offenders: extensions cut too short, trenches with hidden low spots, undersized pipe run under a driveway, and no cleanout anywhere along the line. Cold climates add another layer of risk, since flat runs and pop-up emitters are the parts most vulnerable to freezing. Continuous slope, oversized pipe, and a seasonal disconnect at the downspout all help.
- Inspect the system every spring and fall, and flush buried lines with a hose to check flow.
- Check that pop-up emitters open freely and dry wells are draining, not backing up.
- Clear splash pads and river-rock outlets of leaves and mulch buildup.
- Call a professional if you notice trench settling, recurring backups after storms, or standing water that suggests a high water table.
Pro Tip: If your yard tends to hold water into April, that’s your high water table talking. Plan your solution around it instead of fighting it every spring.
How Ivan’s Landscaping Handles Downspout and Grading Challenges
We’ve been solving drainage problems in McHenry County since 2008, and buried downspout runs are one of the most common calls we get. Some jobs are straightforward extensions; others involve routing pipe under an existing paver patio or correcting years of grading that pushed water toward a foundation instead of away from it. Every estimate starts with an on-site walk to check slope, soil, and where your water actually wants to go, backed by our satisfaction guarantee.
— Chas
Get a Drainage Assessment From Ivan’s Landscaping
If your yard doesn’t have an obvious daylight point, or you’re staring down a French drain tie-in under a paver patio, that’s exactly the kind of job worth handing to a crew that digs these trenches every season instead of once. Ivan’s Landscaping is the option for property owners in McHenry County who’d rather get a correct grading and drainage solution the first time than troubleshoot a DIY dry well two winters from now. We handle everything from simple extension runs to full grading corrections that tie into drainage and grading solutions built for the soil and slope you actually have. Property managers overseeing multiple sites can also fold drainage checks into a seasonal maintenance plan so problems get caught before spring runoff turns into a bigger repair. If your property is near Cary, request a free estimate and we’ll walk the site with you before recommending anything.
