Grading Around Foundation: The Slope Standard That Prevents Flooding

You need a slope that gently directs water away from your house for several feet, and a minimum clearance of exposed foundation wall above the soil line. These two numbers, drawn from Building America Solution Center guidance and referenced in ENERGY STAR and IRC construction standards, are the baseline every grading job around a foundation should meet. If your yard falls short of either one, water is finding its way toward your basement or crawl space instead of away from it.

Do this today, before you plan anything bigger:

• Pull mulch and soil back from the siding until you can see at least 4 inches of foundation wall, as recommended by MMSD’s grading guidance.
• Walk the perimeter after the next rain and flag every spot where water pools or lingers.
• Check where your downspouts discharge. If water dumps within a few feet of the foundation, attach an extender today.

Quick fact: a slope of 0.5 inch per foot works out to a total drop over a 10 foot run, consistent with the standard cited in the Building Science Education guidance on final grading.

These are stopgaps, not a fix. A temporary earthen berm or a longer downspout hose buys you time. A proper regrade is still the job that actually solves the problem.

Key Takeaways

Correct grading around a foundation requires a minimum 0.5 inch per foot slope for 10 feet, 4 inches of exposed foundation wall, and a compacted silty clay cap to prevent the fix from settling within a year.

Table of Contents

• How Do You Inspect and Measure Grading Around a Foundation?
• DIY Regrading: A Step-by-Step Sequence That Actually Holds
• Which Soil Should You Use Next to the Foundation?
• Why Gutters and Downspouts Decide Whether Grading Works
• When Should You Hire a Pro, and What Will It Cost?
• Common Grading Mistakes and a Maintenance Checklist
• How a Professional Regrade Is Scoped, and What to Expect From a Contractor
• What Homeowners Get Wrong About Grading
• Get Your Grading Done Right the First Time
• Sources

How Do You Inspect and Measure Grading Around a Foundation?

Most grading problems announce themselves after a storm, and you don’t need instruments to spot the first signs. Walk the property an hour or two after heavy rain and look for standing water within several feet of the walls, dark algae or splash staining low on the siding, and mulch that’s gone from damp to saturated. A musty smell in the basement or a damp band along the lowest few inches of drywall usually traces back to grading outside, not a foundation crack inside.

Once you’ve spotted the trouble zones, measure them. Here’s a simple method that doesn’t require a survey crew:

1. Lay a straight 10 foot board flat on the ground, one end touching the foundation.
2. Set a carpenter’s level on top of the board and raise the far end until the bubble reads level.
3. Measure the gap between the raised end of the board and the ground below it. That gap is your total drop over 10 feet.
4. Compare the number to the 6 inch benchmark. Less than that, and the ground is too flat, or worse, sloping toward the house.

A string line and a line level work the same way over longer runs, which is useful for side yards where a 10 foot board is awkward to maneuver.

Map the whole perimeter, not just the spot where you noticed the puddle. Pay particular attention to four zones: window wells, where soil often settles and traps runoff; corners, where two roof planes and two grade slopes collide; anywhere near a patio, walkway, or paver edge that might be acting as a dam; and directly under every downspout, where concentrated flow does the most damage. Write down how many inches of rise each zone needs to hit the standard. A corner that’s only 2 inches low needs a very different fix than one that’s flat or reverse sloped by 4 inches.

Pro Tip: Do your inspection during or right after rainfall, not on a dry day. Dry soil hides grading problems that become obvious the moment water hits the ground.

DIY Regrading: A Step-by-Step Sequence That Actually Holds

Small and moderate regrading jobs, generally a few inches of correction across a run of 10 to 20 feet, are within reach for a patient homeowner with basic tools. Here’s the sequence that keeps the fix from sliding or settling within a season.

Before you touch a shovel:

• Call 811 to have utility lines marked. It’s free, and it’s the single most important step you can skip and regret.
• Clear mulch, edging, and any plantings within 2 to 3 feet of the foundation so you can see the true grade.
• Protect window wells with covers or temporary barriers so fill doesn’t spill into them during work.

Building the grade:

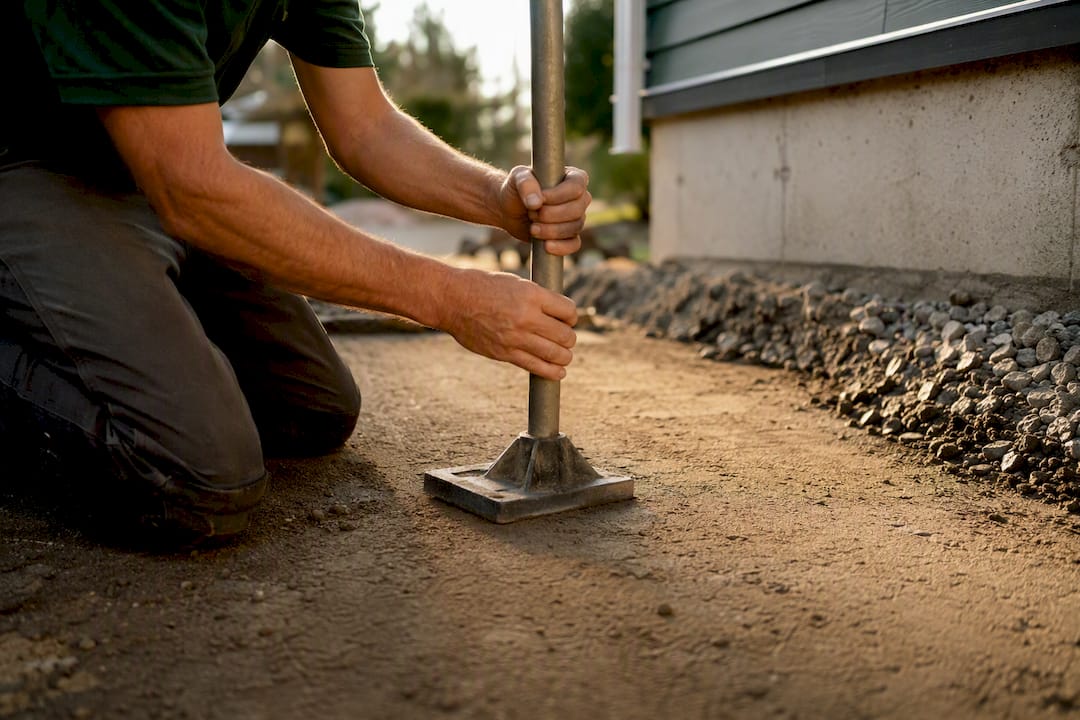

1. Bring in a compactable mineral fill, not bagged topsoil, and spread it in lifts no thicker than 2 to 3 inches.
2. Tamp each lift before adding the next one. A hand tamper works for small areas; a rented plate compactor saves your back and does a more even job across anything larger than a small planting bed.
3. Repeat the lift and compact cycle until you’re within 2 to 4 inches of your target grade height.
4. Finish with a cap of 2 to 4 inches of silty clay, mechanically compacted. This is the layer that does the real work over time, according to Building Science Education’s grading guidance, because a loose, uncapped fill settles unevenly and recreates the low spots you just fixed.
5. Check your slope again with the board and level method from the inspection step. Adjust before you call it done.
6. Seed the disturbed area or install a low, spreading groundcover. Bare soil on a slope erodes fast, and erosion undoes compaction.

Basic tools for this job: a square point shovel, a wheelbarrow, a hand tamper, and a garden rake for final grading. If you’re correcting more than a narrow strip, renting a plate compactor for a day is worth the cost. Hand tamping alone rarely achieves the density a mechanical compactor delivers, which matters because uncompacted fill is the leading cause of grading failures showing back up a year or two later, according to drainage guidance from Jaspector.

Pro Tip: Compact each lift while the soil is slightly moist, not bone dry or soaked. Dry fill won’t bind together under a tamper, and soaked fill just squishes and springs back.

Which Soil Should You Use Next to the Foundation?

The material touching your foundation matters as much as the slope angle. High-organic topsoil, the loose, dark stuff sold in bags for garden beds, is a poor choice directly against a wall. It holds water, decomposes over time, and shrinks as it breaks down, which recreates the low spot you just filled. Use a compactable mineral fill instead for the bulk of the buildup, then finish with the same 2 to 4 inch silty clay cap referenced earlier, mechanically compacted rather than just raked smooth.

That compaction step isn’t optional if you want the fix to last. Loose fill settles under its own weight and under seasonal freeze-thaw cycles, and settlement is the single most common reason a grading fix that looked perfect in October is holding water again by the following spring.

A few situations call for more than a homeowner-grade fix:

• Expansive clay soils that swell and shrink dramatically with moisture may need engineered fill or a geotechnical evaluation before regrading.
• Yards with a documented history of foundation movement or repeated settlement benefit from a soil test rather than a guess.
• Large elevation changes, more than a foot or so over a short run, usually call for retaining structures, not just added soil.

Once the cap is compacted and graded, get vegetation established quickly. Grass, groundcover, or even erosion control matting on a slope hold the soil in place through the first few rain events, which is exactly when a freshly regraded slope is most vulnerable to washing out.

Why Gutters and Downspouts Decide Whether Grading Works

A perfectly sloped yard can still flood a basement if a downspout dumps its entire load six inches from the wall. Roof runoff concentrates rainfall that would otherwise spread evenly across the yard into a narrow stream at each downspout, and that stream can overwhelm even a textbook 0.5 inch per foot slope. Treat your gutters as part of the grading system, not a separate project, as BASC’s guidance on gutters and downspouts makes clear.

The fix that matters most is also the simplest: extend every downspout so it discharges at least 10 feet from the foundation, or routes into a swale or drywell designed to carry the water further.

• Flexible extenders are a fast, cheap short-term fix, but they’re easy to disconnect or crush with a mower.
• Buried solid pipe running to a daylight discharge point or a dry well is the permanent version of the same idea, and it stays out of the way of mowing and landscaping.
• If your side yard is narrower than 10 feet, a shallow swale or a small area drain tied into buried piping can move water past the limited space you have.

Check gutters for clogs and proper pitch as part of your regular grading inspection. A gutter that overflows along its length defeats downspout routing entirely, since the water never reaches the discharge point at all.

When Should You Hire a Pro, and What Will It Cost?

Some grading problems are a weekend project. Others need equipment, permits, or judgment calls that go past what a homeowner should tackle solo. Call a professional when you’re dealing with a large lot-wide drainage pattern that channels water toward the house rather than a single low spot, when settlement keeps recurring in the same area year after year despite your fixes, or when the corrected grade would require a retaining wall, which typically needs a permit.

Cost expectations vary by scope, and getting a specific quote for your property beats guessing from a national average:

• DIY regrade, materials only: Fill, a rented compactor for a day, and seed typically run a few hundred dollars for a small area.
• Contractor regrade: Standard residential regrading jobs commonly run $500 to $2,000, depending on the square footage and how much fill needs to be brought in or hauled away.
• Comprehensive drainage or waterproofing: Projects that combine regrading with French drains, sump systems, or exterior waterproofing often run $5,000 or more, depending on scope.

When you’re collecting bids, ask each contractor the same set of questions: what fill material they’re using, how they’ll compact it, where the removed soil goes, how they’ll route your downspouts, and whether they guarantee against settlement. A contractor working in Lake in the Hills or anywhere else should answer all five without hesitation.

Pro Tip: A vague bid is a red flag. If a contractor won’t specify soil type, compaction method, or a warranty period in writing, keep calling.

Common Grading Mistakes and a Maintenance Checklist

The most common grading failures aren’t dramatic, they’re small habits that quietly undo a correct slope over a season or two.

• Burying siding: Adding mulch or soil year after year without checking clearance eventually buries wood siding or a weep screed, inviting rot and pests, a problem MMSD’s guidance flags directly.
• Excessive mulch: A thick, repeatedly topped-off mulch bed against the foundation acts like a sponge holding water against the wall.
• Damming edging: Decorative landscape edging installed level or slightly raised on the low side traps water instead of letting it run off.
• Skipping compaction: Loose fill added without tamping settles unevenly within a year, recreating the exact low spot you filled.

Keep the fix working with a short annual routine: inspect the full perimeter after the season’s first heavy storm, keep soil and mulch below the 4 inch clearance line, reseed any bare or eroded patches before they wash out further, and confirm every downspout still discharges where you routed it. Before adding a new patio, garden bed, or paver walkway, check how it will interact with your established slope. A beautiful new hardscape feature that blocks runoff can undo years of correct grading in one season.

How a Professional Regrade Is Scoped, and What to Expect From a Contractor

A professional regrade typically follows a set sequence: a utility locate, excavation or import of compactable fill, staged lifts with mechanical compaction between each one, downspout re-routing where needed, erosion control on any exposed slope, and final seeding or sod as cleanup.

Ivanslandscaping has handled drainage and grading work for McHenry County properties since 2008, and a few things should be standard in any bid you accept:

• A written satisfaction guarantee, not a verbal promise.
• A free estimate before any work begins, with the compaction method and fill type specified.
• A clean job site policy, meaning removed soil and debris don’t sit in your yard for weeks.
• A maintenance plan option so the grade and surrounding landscaping stay in shape after the project wraps.

Ask any contractor for the same commitments before signing: compaction method, a stated warranty period against settlement, and a clear plan for site restoration once the grading work is done.

What Homeowners Get Wrong About Grading

The conventional advice on grading treats it as a one-time fix: dump some soil, slope it away, done. That’s backward. Grading is a system that includes your gutters, your soil choice, and your compaction method, and skipping any one of those pieces is why so many homeowners regrade twice in five years.

The bigger blind spot is how many people jump straight to interior waterproofing, sump pumps, drain tile, sealants, when the actual problem is sitting six inches outside their basement wall. Surface grading is cheaper, less invasive, and it’s the first thing worth ruling out before spending thousands on a system that treats water after it’s already inside.

If you take one thing from this guide, prioritize the cap and compaction step over chasing a perfect slope number. A slightly imperfect but well-compacted grade beats a textbook slope built on loose fill that settles by spring.

— Chas

Get Your Grading Done Right the First Time

Ivanslandscaping handles drainage and grading work as part of a broader landscaping practice built in McHenry County since 2008, which means the crew regrading your yard also understands how that slope interacts with your mulch beds, patio, and lawn, not just the drainage math in isolation. That matters if you’ve been quoted a “regrade only” job by someone who won’t touch the downspout routing or the eroded patch it left behind. Every estimate is free, response times are fast, and every job site is left clean when the work wraps, backed by a satisfaction guarantee. If you’re in the area, see what’s involved for landscaping services in Lake in the Hills or check out recent grading and drainage projects completed around the county. Request a free estimate today and get a specific plan for your yard instead of a generic slope number.

Sources

For deeper technical detail beyond this guide, consult the Building America Solution Center’s grading resource, MMSD’s homeowner grading guidance, and the IRC code sections referenced by ENERGY STAR. Check with your local building department before any regrade that changes how runoff crosses a property line.

• Proper Grading Around Your Home | MMSD
• Final grade slopes away from foundation | Building America Solution Center
• Land is graded: final grade slopes away from foundation | Building Science Education
